Mini Skid Steer Loader XCMG XC750K

XCMG XC750K 1 ton Chinese mini skid steer loader with bucket and hammer.

 The XC750K is a new mini skid steer loader of XCMG. The unit can be equipped with a two-speed walking configuration, a pressurized cab and a fresh air conditioning system. The whole machine adopts a large flow system, which can meet the needs of working conditions such as clearing manure in cattle house, loose sand in bed, stacking pasture, and road cleaning.

Performance Characteristics:

  1. Strong power and high energy-conservation and efficiency

* Features strong power, ultra-low emission, and higher fuel efficiency.

* Achieve high working efficiency and complete the site transfer rapidly and efficiently.

* It can respond faster to the needs of emergency working conditions such as rapid snow removing.

* The hydrostatic drive device is applied to realize quick change of appropriate attachments in the operation site.

  1. Platform design for high reliability and firmness

* Realize high structural reliability and reasonable stress distribution.

* Applied to realize higher reliability.

  1. Multiple Applications

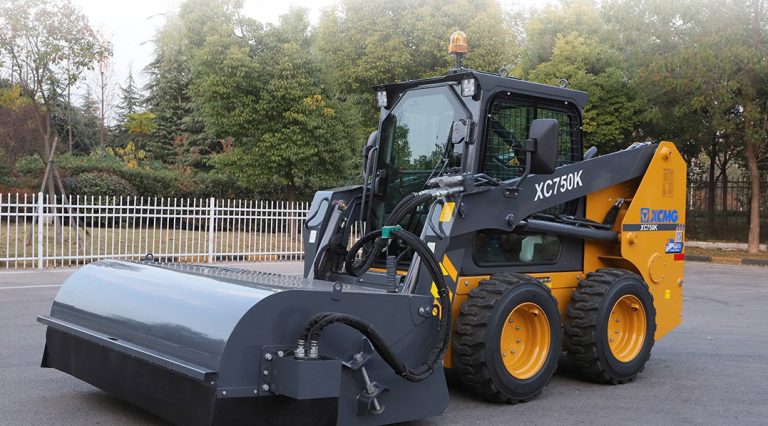

Inclined sweeper/ Snow plough/ Rotary tiller/ Closed sweeper/ Planer/ Manhole cover planer/ Breaking hammer/ Twist drill/ Continuous ditcher.

Description Unit XC750K

Engine

Rated power HP(Kw)/rpm 67(50)/2300
Emission standard Chinese-III

Working hydraulic system

Standard flow L/min 75.9
Optional high flow L/min 119.6
System pressure bar 210

Traveling System

Maximum traveling speed Km/h 12
Optional two speed, maximum traveling speed Km/h 18
Tire specification 10-16.5
Control system Operating weight Kg 3200

Loading performance

Rated load Kg 900
Static tipping load Kg 1800
Breakout force kN 20

Overall dimensions

Cab roof height mm 1950
Length with bucket mm 3330
Dumping angle ° 40
Maximum dumping height mm 2375
Dumping range mm 575
Wheelbase mm 1027
Departure angle ° 25
Ground clearance mm 185
Wheel tread mm 1380
Bucket edge width mm 1800
Bucket capacity (High heap) m3 0.45
