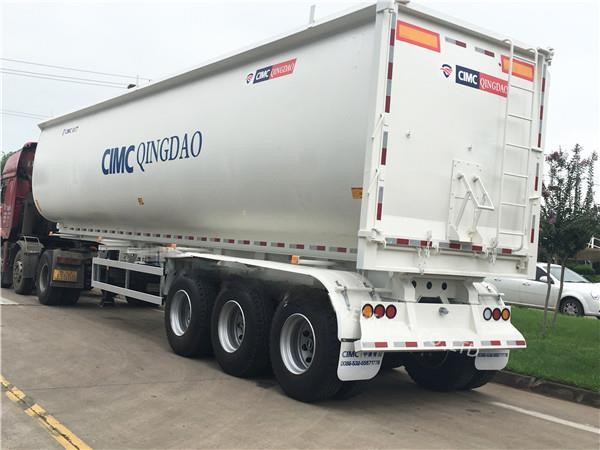

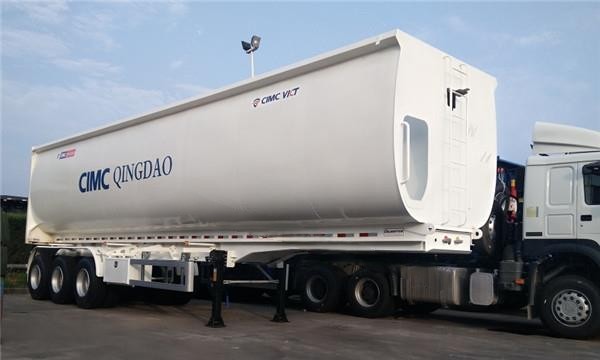

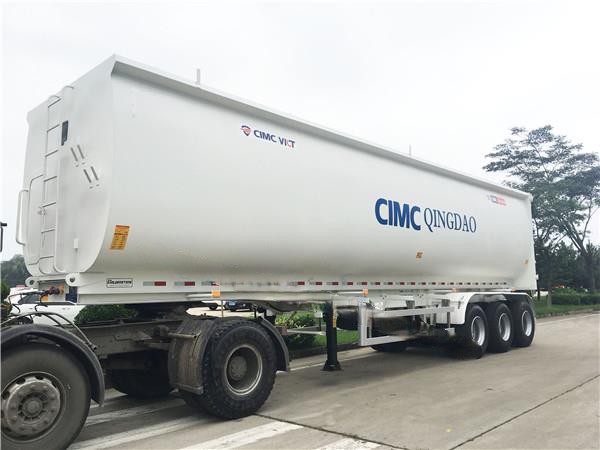

Grain Transport Trailer Cimc Qingdao 50m³ 40T U-type with 3 axles
Technical documentation
DESCRIPTION
CHARACTERISTICS
Product Features
- Advanced technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.
- Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.
- Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.
- Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.
- Tool Box: Large capacity water-proof detachable tool box.
- Hot-rolled structural steel welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.
- Tested and proven structure of cargo box is constructed with profiled steel from, corrugated plate and mold pressed steel stake.
- Reliable dual circuit air brake with quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.
Product Specifications
Dimensions and weight (can be adjustable based on need):
| Type | 50cbm Grain Dump Trailer Truck Chassis | |
| parameter | Dimension (mm) | length×width×height: 9,879X 2,500X 3,546 |
| Body | side wall: 3.0mm, floor: 3.0mm; material: Q345choose by factory | |
| Axle space (mm) | Approx 6,602+1,384+1,384 | |
| tareweight (kg) | approx. 8,150 (tolerance ± 4%) | |
| Payload (kg) | 31,000 | |
OEM Parts Configuration:
Could be adjusted according to customer’s request.
| OEM | Landinggear | Goldenstone 30T/ JOST A400, 19″ |
| Kingpin | 3″ bolted king pin. Brand: JOST | |
| Brake system | Dual air brake system, WABCO relay valve; Brake chamber: Type 30/30 on the all axles | |
| ABS | According to customer’s request. | |
| Suspension | American type mechanical suspension with equalizers 3-leaf spring | |
| Axle | BPW OR FUWA 13T, 3 sets | |
| Tire | 11R22.5-18PR, 12+1sets, LINGLONG OR DOUBLE COIN | |
| Rim | 8.25*22.5, equip 12+1 sets | |
| Toolbox | 1 steel box, | |
| Tire bracket | 2 units per chassis | |
| Hydraulic system | HYVA with all the hydraulic kits including the oil tanker, valve, connecting pipe, but not provide the PTO. Customer needs modify the truck tractor by themselves for whole vehicle operation |
|
| Painting | As customers’ requirement |
NOTE: All the details not mentioned above should be comply with Chinese standard.
Steel Structure:
Material: High Strength low alloy steel Q345(350Mpa yield strength) is used for welding I-Beam and Q235(235Mpa yield strength) is used for the fabricated parts.
Main Beams: 500mmx146mmx6mm web welded I-sectionmain beams.
