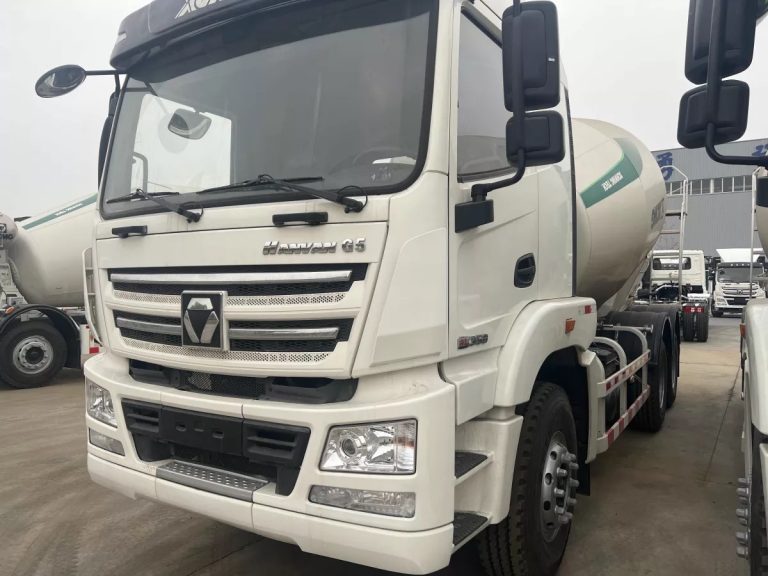

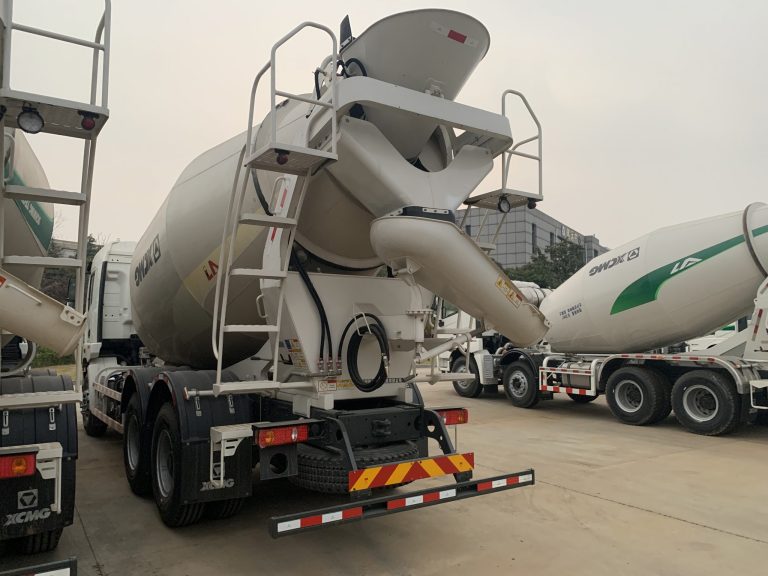

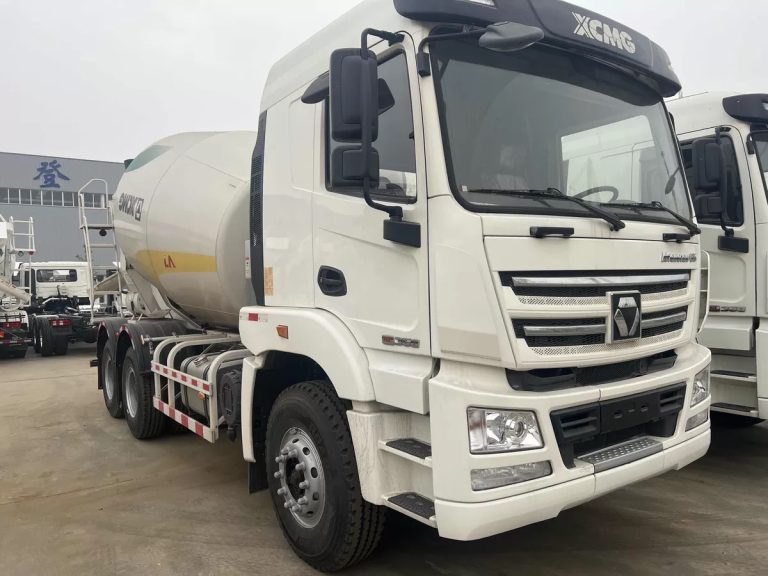

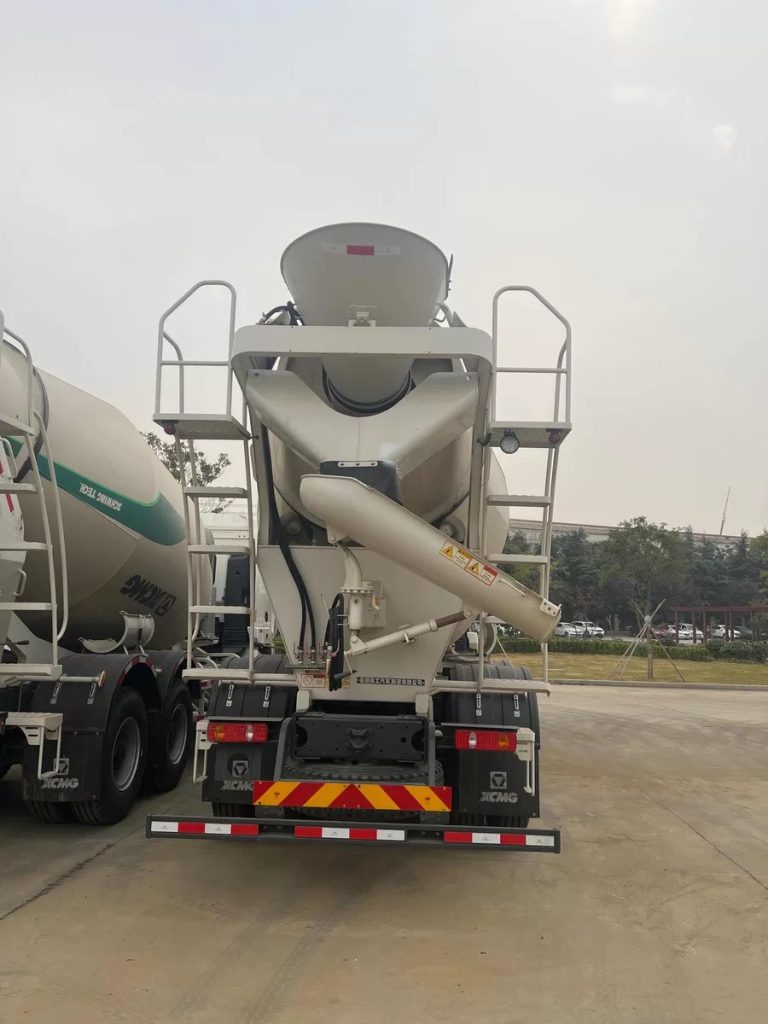

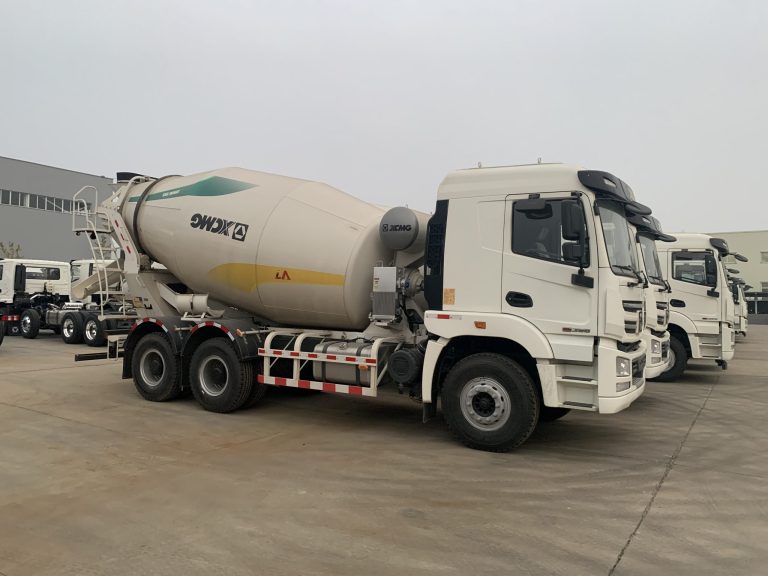

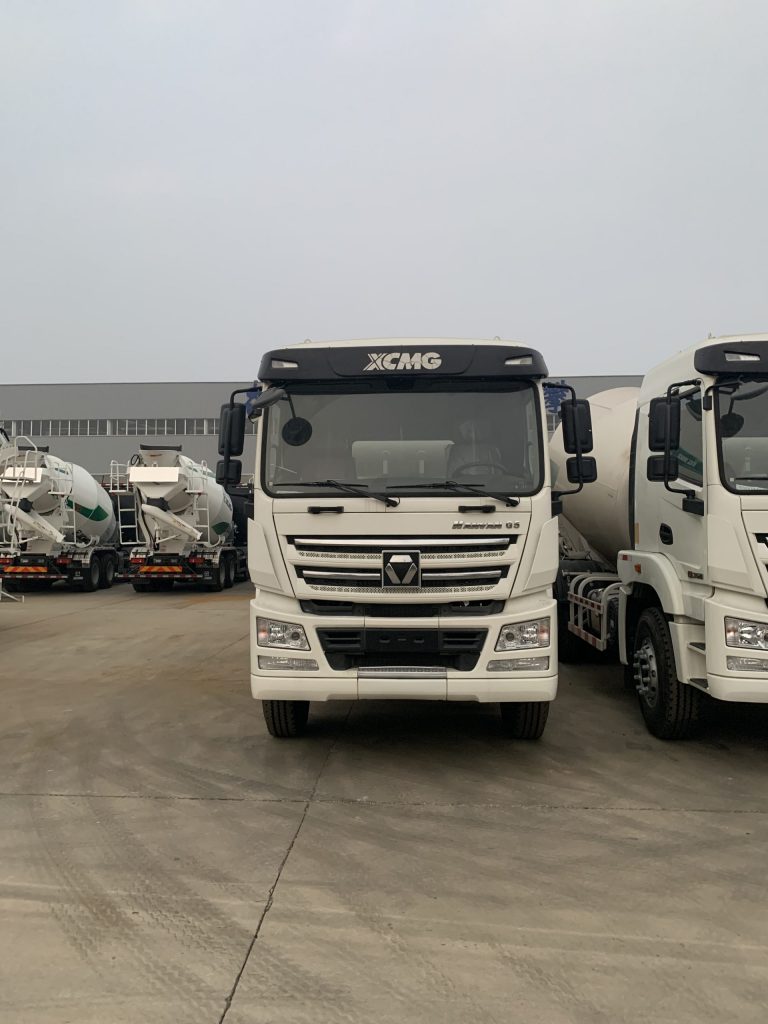

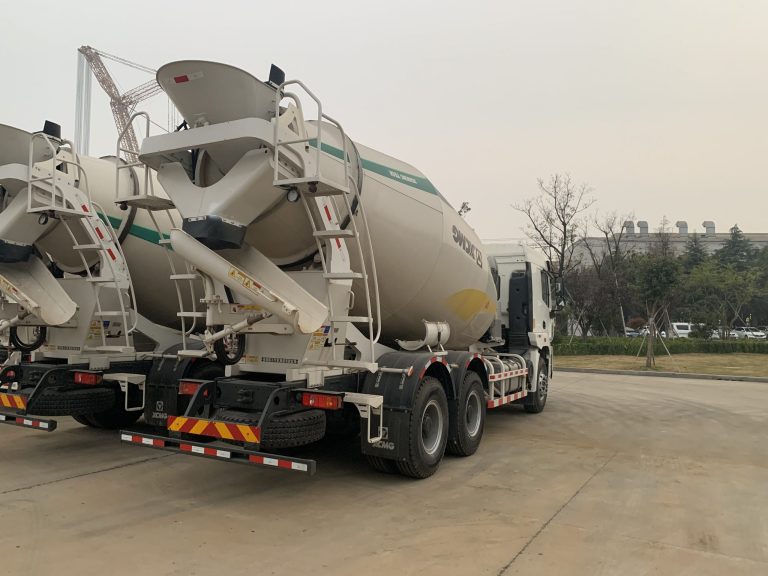

Concrete truck mixer XCMG Schwing NXG5251GJBW5 (6×4) 8m³/10m³/12m³

XCMG Shwing Official NXG5251GJBW5 Mobile Self Loading Concrete Mixer Truck.

Concrete truck mixer XCMG Schwing NXG5251GJBW5 (6×4) 8m³/10m³/12m³

1. Efficient mixing technology

Large lift angle designed on the front cone to provide higher mixing capacity and more uniform mixing with ≤ 5% concrete slump change in all stages; the transition vane uses a unique continuous track design to ensure that the mixing drum has no axial dead angle with a lower residual ratio below 0.4%; SCHWING’s arc-shaped design with a large bend is used on the rear cone for better concrete flow, while loading and unloading speed is increased by 10%.

2. Large capacity and small angle banking technology

The variable height SCHWING paddle design is used for the mixing drum together with an optimized guide tube to ensure stronger material sealing ability and faster filling speed, thus increasing the tank’s load capacity by 6%; Designed with a low angle of incidence with a slope angle 5% lower than peers, and stability improved by 18% at an equivalent load capacity.

3. Comprehensively improve the reliability of key parts

Optimum matching of drum body and blade steel plate ensures equivalent life of the mixing system; The feed hopper and chute are made of multi-layer high-strength wear-resistant lining, the service life of which is increased by 50%. The combined design of two arc-shaped curved rear beams and triangular beam structure is used for the rear support to provide super strong bearing capacity, with 30% longer fatigue life, strong and durable; The use of well-known brand hydraulic parts and long life transmission shaft increases the reliability of the system by one time.

4. Application of Schwing advanced manufacturing technology

The mixing drum is made using special cutting, rolling and assembling equipment, which ensures higher shape and position accuracy, better drum performance and higher stability. Domestic cold-pressed springback compensation technology is used for the spiral blade to ensure higher blade forming accuracy and more reliable quality. Structural parts use painting technology: double blasting + double primer paint + double finish paint, more durable.
