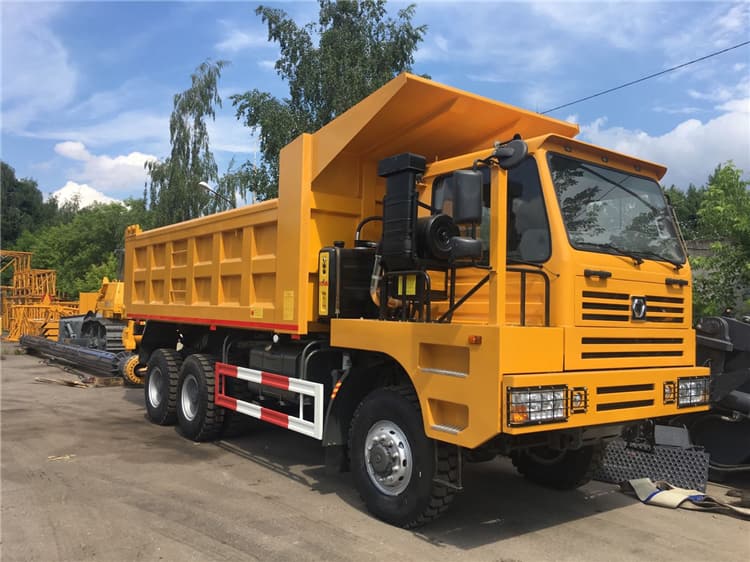

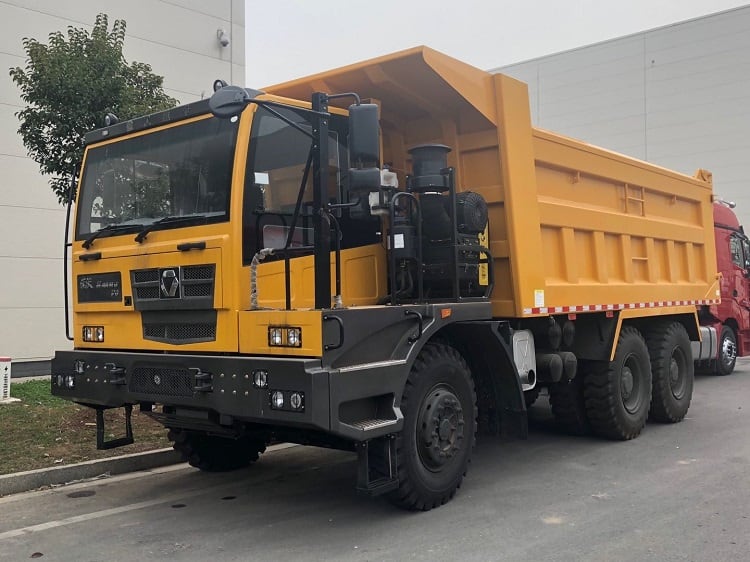

Off-road Dump Truck XCMG XGA5902D3T
XCMG XGA5902D3T Off-Road Dump Truck – New 466 HP Dump Trucks
*According to each engine torque characteristic curve, perfect for various types of Fast manual transmission, Allision automatic transmission, in order to protect the most rationalization power output, the car has excellent starting ability, climbing ability.
* Optimized layout of the traditional system architecture, reducing the loss of the energy transfer process to ensure efficient and fast transfer of kinetic energy.
*Using unique steering and steering gear, steering gear. Steering light, failure rate is lower.
* Dual-circuit brake system, equipped with high pressure accumulator, increase the volume, brake pressure is increased by 25% to 1MPa, the braking distance is shortened.
| Car model | XGA5902D3T | ||
| Mass parameter | Curb weight | 32000 kg | |
| PVM | 90000 kg | ||
| Performance | Maximum. speed | 48 km/h | |
| Min. turning diameter | 9.9 m | ||
| Aptitude score | 39% | ||
| Fuel tank | 500 l | ||
| dimensions | dimensions | Length | 9045 mm |
| Width | 3400 mm | ||
| Height | 3972 mm | ||
| Wheelbase | 3800+1600mm | ||
| Wheel track | Front tire | 2800 mm | |
| rear tire | 2526 mm | ||
| Min.clearance | 380mm | ||
| Entry angle | 36° | ||
| exit angle | 45° | ||
| front overhang | 1755 mm | ||
| rear overhang | 1890 mm | ||
| Cargo size | 6000×3200×1600mm | ||
| Taxi | Model | K20 HANWO P9 LHD | |
| Passengers | one | ||
| Engine | Model | WP12G460E310 | |
| bias | 11,596 l | ||
| output power | 338 kW | ||
| Maximum. torque speed | 2000Nm | ||
| Grab | Model | Φ430
Pull Type Diaphragm Spring Clutch |
|
| Operation | Hydraulic guide | ||
| Transmission | Model | 8DS240A | |
| PTO | QH70 | ||
| Operation | /flexible shaft | ||
| forward ratio | 8.15/6.01/4.11/3.05/2.12/1.45/1.00/0.76 | ||
| Reverse ratio | 7.57 | ||
| driving axle | Model | 35T PENSION | |
| Gear ratio of the main gearbox | 15.66 | ||
| Brake type | Drum | ||
| Differential lock | Center differential lock | ||
| Front axle | Model | 19T PENSION | |
| Brake type | Drum | ||
| Wheel | prosperous | 10.00W-24 | |
| Tire | 14.00-25 NHS | ||
| Frame | Model | box beam | |
| HxW-t | 450mm | ||
| Frame Width | 1060 mm | ||
| Suspense | Front | Type of | leaf spring |
| Springs | fifteen | ||
| Rear | Type of | Balanced Suspension | |
| Springs | fifteen | ||
| Steering | Model | Φ120/
Hydraulic power circulation ball type |
|
| Steering ration | 23.04 | ||
| Maximum pump pressure | 17 MPa | ||
| Brake system | Rated pressure | 1 MPa | |
| Service brake system | Dual circuit pneumatic braking | ||
| Parking brake system | Spring-loaded pneumatic brake with energy storage | ||
| Auxiliary brake system | Exhaust engine brake + retarder | ||
| electrical system | Voltage | 24V | |
| Generator power | 2.2 kW | ||
| Battery voltage/capacity | 2×12V/165Ah | ||
