Electric Front Wheel Loader XCMG XC918-EV
Technical documentation
DESCRIPTION
CHARACTERISTICS

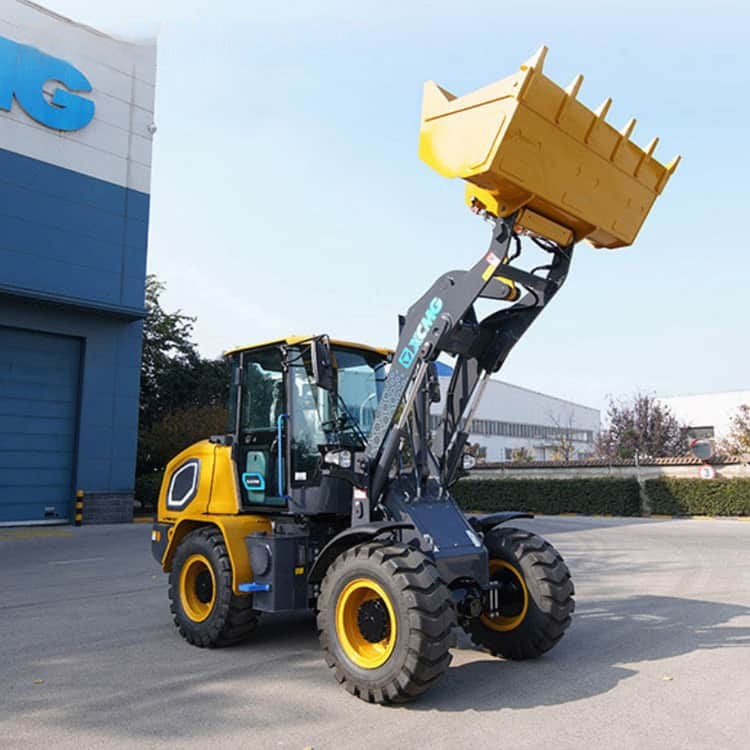

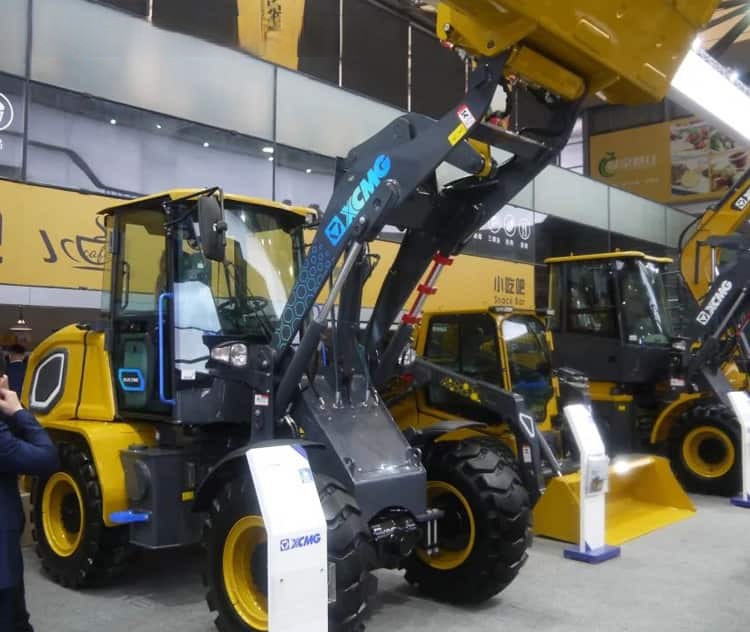

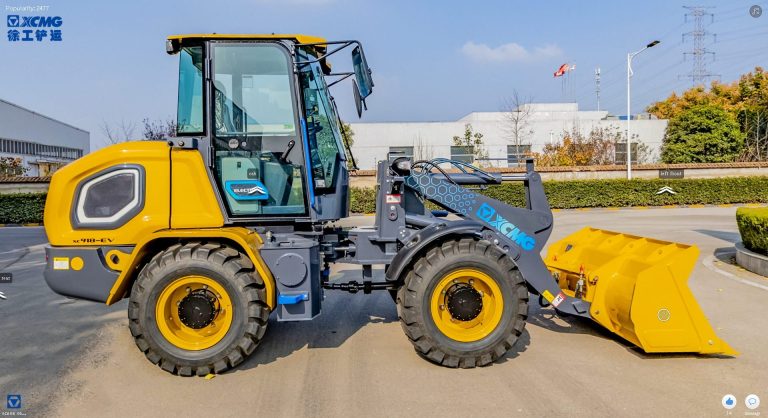

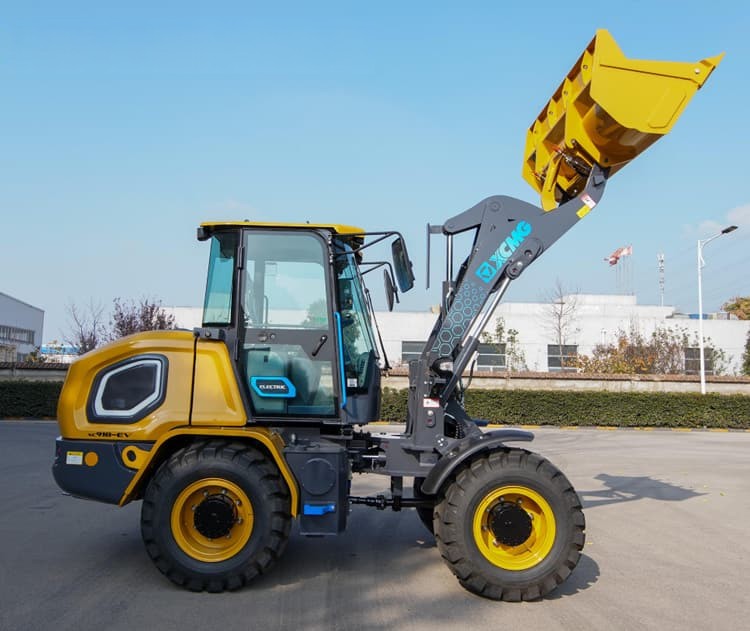

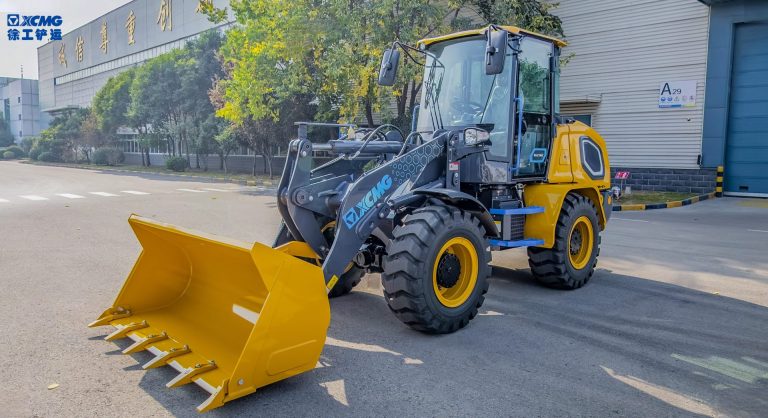

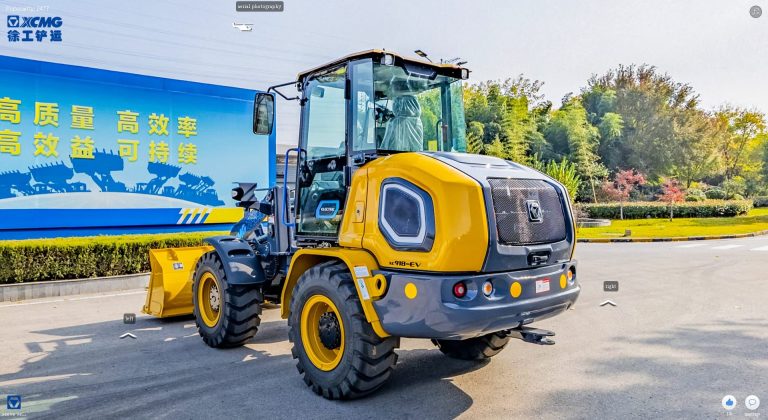

Electric Front Wheel Loader XCMG XC918-EV
Electric loader XCMG 2 tons XC918-EV.
The XCMG XC918-EV 2 ton electric skid steer replaces «diesel» with «electric». The travel system and hydraulic system are driven by all-electric, zero-emission electric motors, saving air filter, machine filter, oil filter and other maintenance and energy costs. The cost is only 1/3 of the cost of a diesel forklift, which is economical and efficient.
XC918-EV electric forklift applicable working conditions:
Meet the kit needs of animal husbandry, agriculture, forestry, urban construction and other fields, and actively respond to the requirements of green environmental protection.
XC918-EV electric forklift features:
1. Ultra-quiet, more efficient, more economical, more comfortable and more convenient.
2. Reinforced drive axle with high dynamic load factor, which is more suitable for heavy working conditions such as soil, sand and stone.
3. Short tail design, smaller turning radius, flexible maneuverability and wider application range.
4. Multi-function machines, one-button quick change, meet the requirements of one machine with multiple functions.

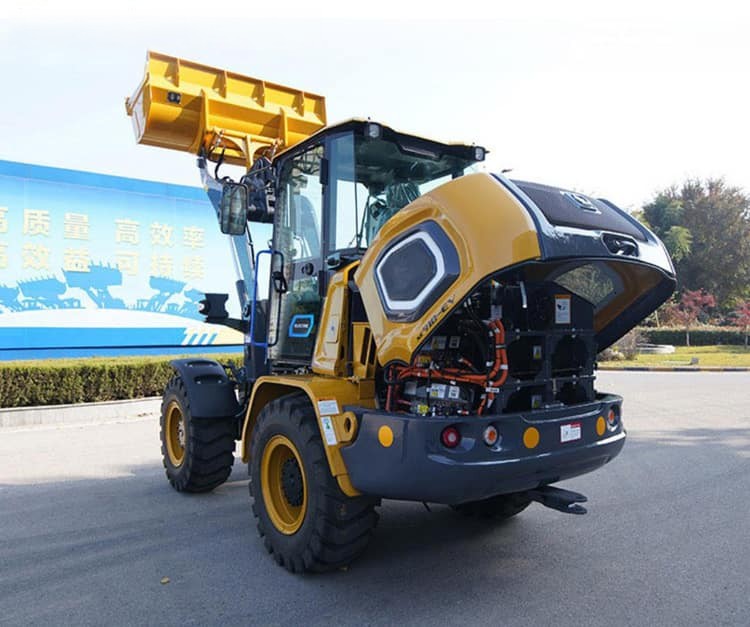

5. High energy density lithium battery, fast charging and long battery life.
| Items | Units | Options |
| General dimensions | mm | 5630*2060*2750 |
| Rated load | kg | 1800 |
| Rated power | kW | 64 |
| Bucket capacity | M3 | one |
| Operating weight | kg | 6700 |
| Dump height | mm | 2670 |
| Drop distance | mm | 775 |
| Wheelbase | mm | 2150 |
| Tread | mm | 1550 |
| Maximum breakout force | know | 62 |
| Total cycle time | With | 9.7 |
| Min. turning radius | mm | 3700 |
| Angle of articulation | 。 | ±40 |
